Modern beekeeping equipment

Advanced solar-powered smart beehives for maximum honey yield.

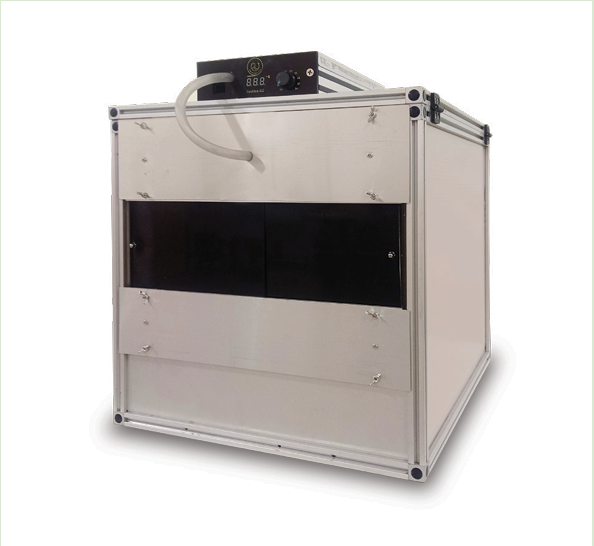

beehive

These modern beehives are equipped with temperature and humidity control systems, Propolis production ability and automatic permanent honeycombs for fast easy honey extraction.
In design and construction of organia beehives, various factors such as controlling the humidity and temperature inside the beehive,precautions to deal with bee enemies such as beeswax eating worms, beetles, hornets and other parasite wild bees, mice, mites and spiders have been considered.
These modern beehives are equipped with temperature and humidity control systems, Propolis production ability and automatic permanent honeycombs for fast easy honey extraction. In design and construction of organia beehives, various factors such as controlling the humid ity and temperature inside the beehive, precautions to deal with bee enemies such as bees wax eating worms, beetles, hornets and other parasite wild bees, mice, mites and spiders have been considered.
For this reason, organia beehives have the following advantages:
The first beehives equipped with the systems to control heat and humidity by application of solar energy (Ventilation and inside humidity of the beehive is controlled electronically by using solar energy and the temperature of beehive is stabilized at 25 to 30 degrees Celsius. Of course optimal temperature can be chosen according to the species of bee).
Enjoying more than 40% efficiency in production of honey.
Ability to extract honey without using auxiliary tools such as centrifugal tools, hot water boilers, etc.
Ability to control the disease and inspect the beehive without any need to opening.
Equipped with the dust and parasite insects filter.
Equipped with the Propolis production network.
Equipped with the solar heater to control the temperature of the beehive in the winter.
Enjoying easy installation and operation that easily can be learned by the villagers Reduction of the production cost by 40% compared to the products offered by the foreign competitors.


beehive beehive

Modern beekeeping equipment

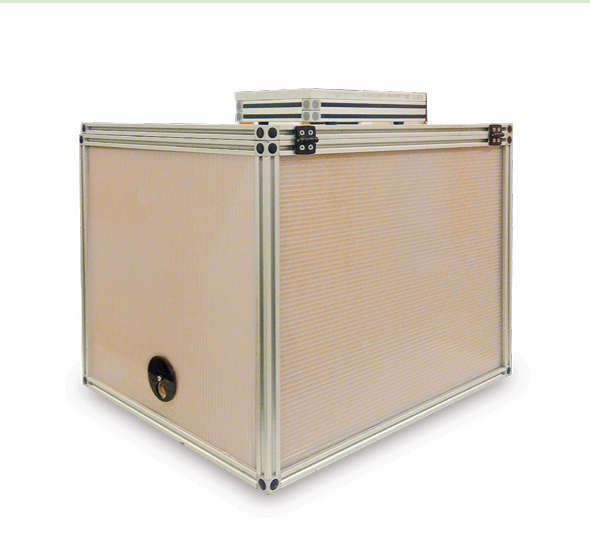

Organia beehives are open floor beehives. The floor of these beehives is made of a box with a wooden body that is covered by a stainless steel mesh shield to provide easy ventilation between the floors and honeycombs and to balance the temperature of various parts inside the beehive.
The benefits of an open floor beehive include:
Reduction of bee larvae mortality due to heat shock
Ability to inspect the beehive and control the diseases easily
More than 40% reduction of Varroa parasite mite occurrence
and ability of implementing organic Varroa parasite mites traps Modern beekeeping equipment
Preventing the growth of bee lice.
Preventing beeswax conglomeration caused by overheating inside the beehive.
Reduction the need for hydration of the beehive by bees to cool the beehive and increase the daily production of the colony by substitution of water carrying with nectar carrying.
Prevention of bees suffocation during transportation and long journeys.
Controlling the humidity of the beehive.
Prevention of mold growth on the wooden parts and other equipment that are inside empty beehives.
beehive
Organia beehive is made of three types of materials:
wood, aluminum and polycarbonate.The length, width and height of the Organia beehive are 54, 46 and 48 cm, respectively. The total weight of the beehive is 18.5 kg, which includes honeycombs that weigh 7 kg.
the body that weighs 10 kg, and the smart ventilation and cooling device that weighs 1.5 kg. The body is made of aluminum and wood, the honeycombs are made of polypropylene and the smart ventilation and cooling device frame is also made of aluminum. The materials of connections of the device have been select ed according to their function. The energy consumption of this device is supplied by a 5 watt solar cell and its power consumption is 4 watts. The production capacity of Organia beehive is up to 25 kg honey per year.

Organia solar bee venom extractor

Advanced solar bee venom extractors and apiary energy controllers.

bee venom

Bee venom has important healing properties in revitalizing the human immune system. A substance called melittin is ex tracted from bee venom, which is used as an active ingredient in some anti-cancer and anti-inflammatory drugs. Several types of bee venom extractor have already been made in the world and also one type was produced in Iran. However Organia solar bee venom extractor has unique technical specifications and benefits as following:
1- Controlling the frequency and intensity of the poison stimulus current.
2- Ability to adjust the stimulation process according to the type of colony.
3- Ability to work with batteries and solar energy and also equipped with a charge control system.
4- Rugged design and using military connectors for application in remote, difficult to access natural environments.
5- Application of S-304 stainless steel wires that are resistant to corrosion and suitable for specific food applications.
6- Aluminum body that is resistant to impact and rust.
7- Prefabrication of all parts and the ability of quickly repair and parts replacement.
8- Resistance of the device to the heat.
9- Insulation of the device against rain and moisture. All stages of design, prototyping and mass production of this device have been done in Hengam EPC.

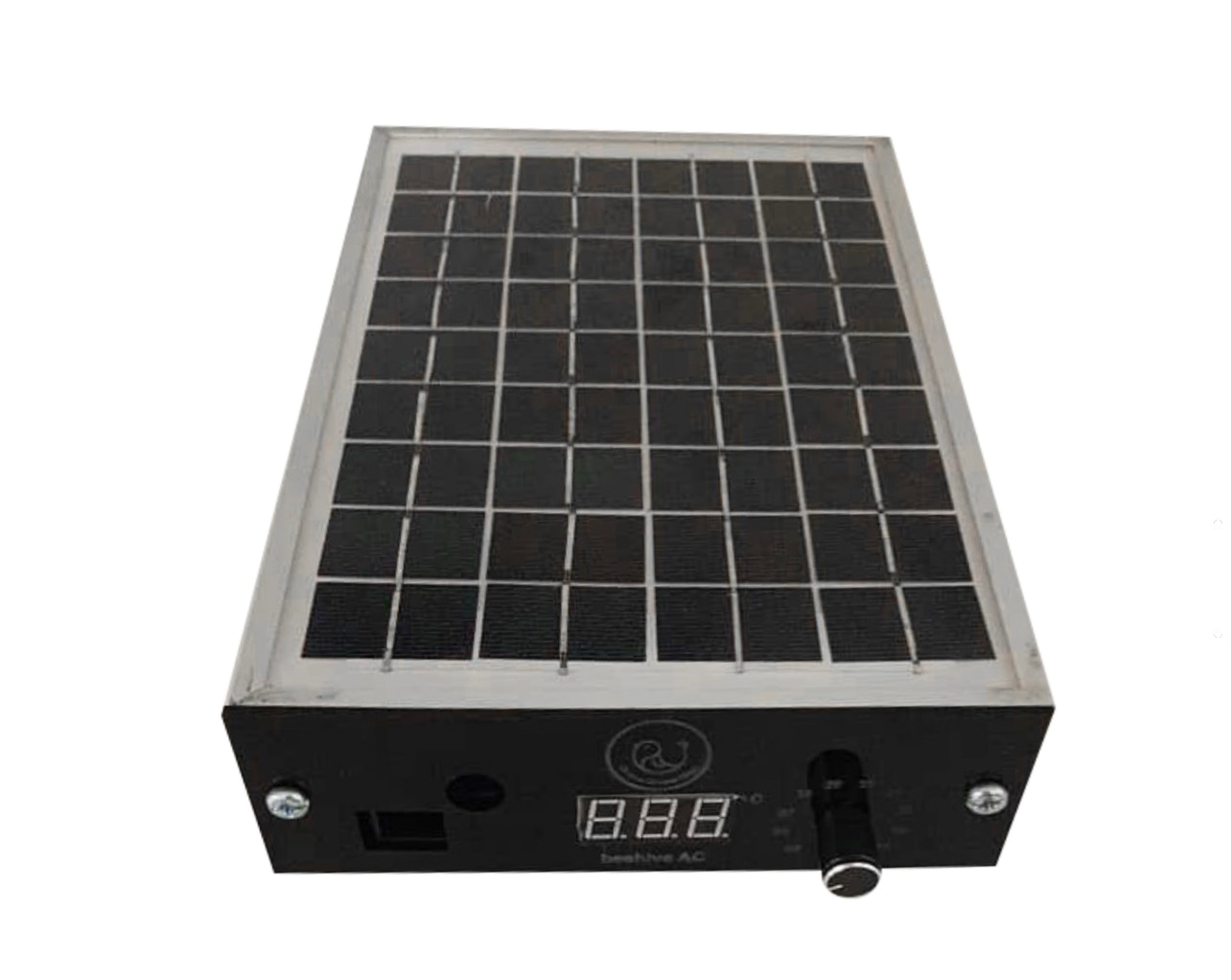

Organia energy generator and beehive charge control system (Organia-S1)

Organia energy generator and beehive charge control system (Organia-S1) is made as a special device for bee hives and is used for multiple applications in apiaries. In addition to generating electricity and energy that is needed to control the humidity and temperature inside the beehive, it has the ability to charge bee venom extractor and create stimulants to produce Propolis.
The technical specifications of this devices is as follows:
1- Military connections and connectors.
2- 5 watt panels.
3- Charge control system to prevent harmful charging of batteries.
4- Aluminum body with prefabricated three-sided connections.
5- Resistant to impact and damage of difficult natural environments.
6- Insulation against moisture.
7- Resistant to temperatures up to 70 degrees.wwww

bee venom

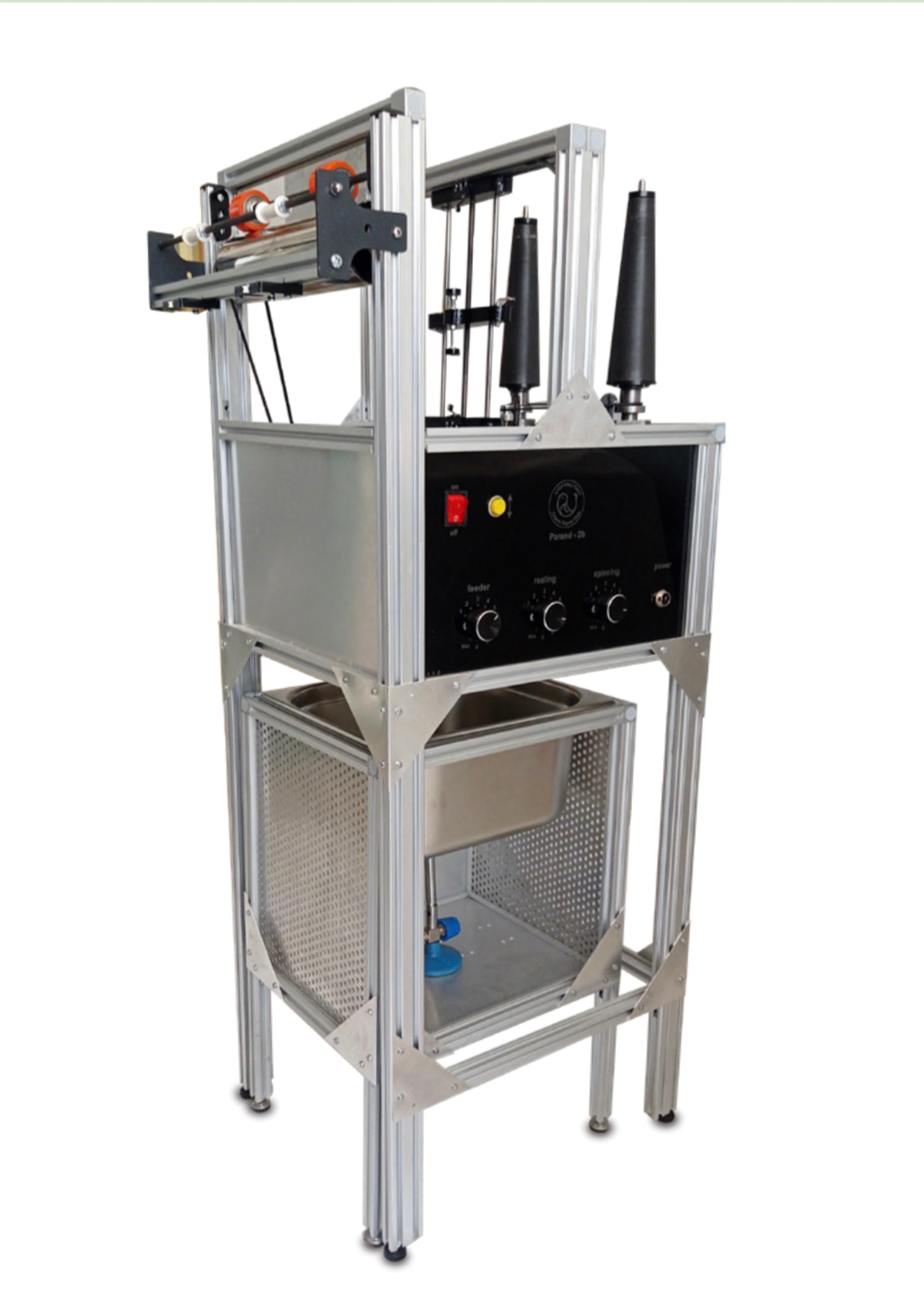

Organia silk reeling machine

Compact, silent, and affordable silk reeling machine for workshops.

silk reeling

This device is made for small and semi-industrial domestic applications due to its small size and easy portabili ty. Due to the low noise and using dc current, this device is safe with no danger for humans and because of its reasonable price, unlike competitive foreign models, it can be easily purchased by households.

Advantages of Organia silk reeling machine

• Silence.
• Low power consumption.
• Upgradeable for industrial applications.
• 24 volt dc.
• Safe.
• Small size.
• Equipped with all accessories.
• Equipped with a base for ease of use.
• The reasonable price.
• Pressure and moisture resistant body.
• Lightweight.

Applications

• Use in domestic and semi-industrial workshops.
• Use in small factories.
• Use in remote places and suburbs.
• Use in spinning or silk reeling workshops.

silk reelingsilk reelingsilk reeling
